Condor in Action SC-CAMP 2011 - practical session

Acknowledge

Following exercises are based on the exercises made by Alain Roy from the Condor team of University of Wisconsin-Madison. A big thanks to Alain for letting us use them.

Introduction

During this exercises we will be using Condor version 7.6.1 which is the most current stable version.

Some useful links:

Condor Pool at SC-CAMP'11

The Condor Pool at SC-CAMP'11 is actually deployed on the top of the Grid5000 to which you had an introduction on Tuesday. It consists of 30 hosts:

During the exercises we will refer to the schedd node as User Interface (UI).

Before you start, make sure you can access it. All you need is a G5K account and internet access:

  1. log to the G5K access

  2. log to the G5K frontend

  3. log to the Condor UI using the user name below with password costarica.

The details will be provided just at the beginning of the session as it depends on the current reservation.

Notice what all can G5K allow you to do - deploy a Grid engine.

Account   Name
--------------
sccamp1:  Alejandro José Baltodano Madrigal
sccamp2:  Andrei Fuentes Leiva
sccamp3:  Andrés José Aguilar Umaña
sccamp4:  Daniel Andrés Chacón Soto
sccamp5:  Edwin Adverdi Pérez Ventura
sccamp6:  Esteban Pérez Hodalgo
sccamp7:  Fabian Fallas Moya
sccamp8:  Giorgia Di Bianca
sccamp9:  Guillermo Andree Oliva Mercado
sccamp10: Gustavo Martínez Rivera
sccamp11: José Esteban Pérez Hidalgo
sccamp12: Joseiby Hernández Cedeño
sccamp13: Julián Collado Umaña
sccamp14: Kelvin Jose Jimenez Morales
sccamp15: Marcela Alpízar Víquez
sccamp16: Marcial Garbanzo Salas
sccamp17: Marco Antonio Boniche Barquero
sccamp18: Moreno Baricevic
sccamp19: Ricardo Román Brenes
sccamp20: Ricardo José Alvarado Villalobos
sccamp21: Salvador Salado
sccamp22: Sebastián Argüello Gutiérrez
sccamp23: Emmanuel Vargas Blanco

We recommend to create a directory for each exercise so you can easily manage files and make sure that you do not override you stuff.

Supported languages:

Looking at the installation

Before you start doing any of these exercises, you need to initiate condor environment by executing:

$ . /opt/condor/condor.sh

This will add Condor binaries into you path as well as set CONDOR_CONFIG variable that point to the config file of Condor and it is used by most of the binaries.

Condor is installed in this pool in the /opt/condor directory.

How do you know what version of Condor you are using? Try condor_version:

$ condor_version
$CondorVersion: 7.6.1 May 31 2011 BuildID: 339001 $
$CondorPlatform: x86_64_deb_5.0 $

Condor has some configuration files that it needs to find. It finds them because you have put CONDOR_CONFIG into your environment using the script above:

$ echo $CONDOR_CONFIG
/etc/condor/condor_config

Condor has some directories that it keeps records of jobs in. Remember that each submission computer keeps track of all jobs submitted to it. That's in the local directory:

$ condor_config_val -v LOCAL_DIR
LOCAL_DIR: /var/lib/condor
  Defined in '/opt/condor/etc/condor_config.local', line 4.

$ ls -CF /var/lib/condor
log/ execute/  spool/

The spool directory is where Condor keeps the jobs you submit, while the execute directory is where Condor keeps running jobs.

Check if Condor is running:

%  ps auwx --forest | grep condor_ | grep -v grep
condor    2873  0.0  0.0  33328  3676 ?        Ss   07:48   0:00 condor_master
condor    2874  0.0  0.0  33048  4840 ?        Ss   07:48   0:00  \_ condor_collector -f
condor    2875  0.0  0.0  32784  4876 ?        Ss   07:48   0:00  \_ condor_negotiator -f
condor    2876  0.0  0.0  34464  5512 ?        Ss   07:48   0:00  \_ condor_schedd -f
root      2877  0.0  0.0  21896  2520 ?        S    07:48   0:00      \_ condor_procd -A /tmp/condor-lock.suno-110.421387535127909/procd_pipe.SCHEDD -R 10000000 -S 60 -C 106

There are five processes running: the condor_master, the condor_collector, the condor_negotiator, condor_schedd, and the condor_procd. In general, you might see many different Condor processes. Here's a list of the processes:

condor_q

You can find out what jobs have been submitted on your computer with the condor_q command:

$ condor_q

-- Submitter: suno-11.sophia.grid5000.fr : <138.96.21.111:52361> : suno-11.sophia.grid5000.fr
 ID      OWNER            SUBMITTED     RUN_TIME ST PRI SIZE CMD

0 jobs; 0 idle, 0 running, 0 held

Nothing is running right now. If something was running, you would see output like this:

$ condor_q
-- Submitter: suno-11.sophia.grid5000.fr : <138.96.21.111:52361> : suno-11.sophia.grid5000.fr
 ID      OWNER            SUBMITTED     RUN_TIME ST PRI SIZE CMD
60256.0   bbockelm        7/6  21:01   0+00:00:00 I  0   0.0  mytest.sh
60279.0   roy             7/7  16:55   0+00:00:01 R  0   0.0  mytest.sh
60279.1   roy             7/7  16:55   0+00:00:01 R  0   0.0  mytest.sh
60279.2   roy             7/7  16:55   0+00:00:01 R  0   0.0  mytest.sh
60279.3   roy             7/7  16:55   0+00:00:01 R  0   0.0  mytest.sh
60279.4   roy             7/7  16:55   0+00:00:01 R  0   0.0  mytest.sh

6 jobs; 1 idle, 5 running, 0 held

The output that you see will be different depending on what jobs are running. Notice what we can see from this:

condor_status

You can find out what computers are in your Condor pool. (A pool is similar to a cluster, but it doesn't have the connotation that all computers are dedicated full-time to computation: some may be desktop computers owned by users.) To look, use condor_status:

$ condor_status

Name               OpSys      Arch   State     Activity LoadAv Mem   ActvtyTime

slot1@sol-49.sophi LINUX      X86_64 Unclaimed Idle     0.000   992  0+00:15:04
slot2@sol-49.sophi LINUX      X86_64 Unclaimed Idle     0.000   992  0+00:15:05
slot3@sol-49.sophi LINUX      X86_64 Unclaimed Idle     0.000   992  0+00:15:06
slot4@sol-49.sophi LINUX      X86_64 Unclaimed Idle     0.000   992  0+00:15:07
slot1@sol-5.sophia LINUX      X86_64 Unclaimed Idle     0.000   992  0+00:14:31
slot2@sol-5.sophia LINUX      X86_64 Unclaimed Idle     0.000   992  0+00:15:05
slot3@sol-5.sophia LINUX      X86_64 Unclaimed Idle     0.000   992  0+00:15:06
slot4@sol-5.sophia LINUX      X86_64 Unclaimed Idle     0.000   992  0+00:15:07
slot1@suno-10.soph LINUX      X86_64 Unclaimed Idle     0.000  4029  0+00:15:04
slot2@suno-10.soph LINUX      X86_64 Unclaimed Idle     0.000  4029  0+00:15:05
slot3@suno-10.soph LINUX      X86_64 Unclaimed Idle     0.000  4029  0+00:15:06
slot4@suno-10.soph LINUX      X86_64 Unclaimed Idle     0.000  4029  0+00:15:07
slot5@suno-10.soph LINUX      X86_64 Unclaimed Idle     0.000  4029  0+00:15:08
slot6@suno-10.soph LINUX      X86_64 Unclaimed Idle     0.000  4029  0+00:15:09
slot7@suno-10.soph LINUX      X86_64 Unclaimed Idle     0.000  4029  0+00:15:10
slot8@suno-10.soph LINUX      X86_64 Unclaimed Idle     0.000  4029  0+00:15:03
                     Total Owner Claimed Unclaimed Matched Preempting Backfill

        X86_64/LINUX    16     0       0        16       0          0        0

               Total    16     0       0        16       0          0        0

Each computer shows up four or eight times, with a slotN at the beginning of the name. This is because we've configured Condor to be able to run multiple jobs per computer. Slot refers to job slot. We do this because these are multi-core computers and they are fully capable of running more jobs at once.

Let's look at exactly what you can see:

Condor Jobs

The object of this exercise to have you run and understand your first Condor job, as well as run small sets of jobs in a parameter sweep. This is an important exercise because it is the basis for everything that follows. If there is anything you don't understand in this exercise, please ask before you continue on.

Hello World from Condor

Let's start with the classical Hello World example.

Your first exercise - a warm up - in this session. You are asked to write a simple program that takes a string argument, a name, and outputs a greeting like "Hello from Condor on machine ", where <name> is the provided argument and <machine> is the hostname of the host executing the jobs (use the gethostname() function for that if you use C). Also include a 5 second delay before exiting so you can see the execution in the schedd queue. Feel free to write in any language you like that is supported (including bash).

After you have done with coding and compiling, test it if it runs:

$ ./simple SC-CAMP11
Hello SC-CAMP11 from Condor on machine sol-9.sophia.grid5000.fr

You are now almost ready to run this job in Condor. The last thing you have to do is to create a Condor submit file. To do that, put the following text into a file called simple.sub:

Universe   = vanilla
Executable = simple
Arguments  = SC-CAMP11
Log        = simple.log
Output     = simple.out
Error      = simple.err
should_transfer_files   = YES
when_to_transfer_output = ON_EXIT
Queue

These lines should be more less self-explainable, but just to make sure:

Next, tell Condor to run your job:

$ condor_submit simple.sub
Submitting job(s).
Logging submit event(s).
1 job(s) submitted to cluster 10.

Now, we can watch the execution using the condor_q command:

$ condor_q

Or more conveniently using the watch command:

$ watch -n 1 condor_q

The output will be something like this:

Submitting job(s).
1 job(s) submitted to cluster 3.
sccamp24@suno-11:~$ condor_q

-- Submitter: suno-11.sophia.grid5000.fr : <138.96.21.111:52361> : suno-11.sophia.grid5000.fr
 ID      OWNER            SUBMITTED     RUN_TIME ST PRI SIZE CMD
   3.0   sccamp24        7/14 08:17   0+00:00:02 R  0   0.0  simple

1 jobs; 0 idle, 1 running, 0 held
sccamp24@suno-11:~$ condor_q

-- Submitter: suno-11.sophia.grid5000.fr : <138.96.21.111:52361> : suno-11.sophia.grid5000.fr
 ID      OWNER            SUBMITTED     RUN_TIME ST PRI SIZE CMD
   3.0   sccamp24        7/14 08:17   0+00:00:03 R  0   0.0  simple

1 jobs; 0 idle, 1 running, 0 held
sccamp24@suno-11:~$ condor_q

-- Submitter: suno-11.sophia.grid5000.fr : <138.96.21.111:52361> : suno-11.sophia.grid5000.fr
 ID      OWNER            SUBMITTED     RUN_TIME ST PRI SIZE CMD
   3.0   sccamp24        7/14 08:17   0+00:00:05 R  0   0.0  simple

1 jobs; 0 idle, 1 running, 0 held
sccamp24@suno-11:~$ condor_q

-- Submitter: suno-11.sophia.grid5000.fr : <138.96.21.111:52361> : suno-11.sophia.grid5000.fr
 ID      OWNER            SUBMITTED     RUN_TIME ST PRI SIZE CMD

0 jobs; 0 idle, 0 running, 0 held

Now let's have a look at the output files. If everything worked out fine, you should see three files:

Let's start with the log file:

$ cat simple.log
000 (004.000.000) 07/14 08:19:22 Job submitted from host: <138.96.21.111:52361>
...
001 (004.000.000) 07/14 08:19:23 Job executing on host: <138.96.22.5:43315>
...
005 (004.000.000) 07/14 08:19:28 Job terminated.
        (1) Normal termination (return value 0)
                Usr 0 00:00:00, Sys 0 00:00:00  -  Run Remote Usage
                Usr 0 00:00:00, Sys 0 00:00:00  -  Run Local Usage
                Usr 0 00:00:00, Sys 0 00:00:00  -  Total Remote Usage
                Usr 0 00:00:00, Sys 0 00:00:00  -  Total Local Usage
        61  -  Run Bytes Sent By Job
        9294  -  Run Bytes Received By Job
        61  -  Total Bytes Sent By Job
        9294  -  Total Bytes Received By Job
...

Sounds good, lets see the output:

$ cat simple.out
Hello SC-CAMP11 from Condor on machine suno-1.sophia.grid5000.fr

What can you tell from this output?

Parameter Sweep

Let's write a different program now sum - it will take two numbers as its arguments and prints out its sum:

$ ./sum 1 2
1 + 2 = 3

In the previous section you saw how to run a single job. If you only ever had to run a single job, you probably wouldn't need Condor. But we would like to have our program calculate a whole set of values for different inputs. How can we do that? Let's make a new submit file called sum.sub that look like this:

Universe   = vanilla
Executable = sum
Arguments  = 1 2
Log        = sum.$(Process).log
Output     = sum.$(Process).out
Error      = sum.$(Process).error
should_transfer_files   = YES
when_to_transfer_output = ON_EXIT
Queue

Arguments = 2 3
Queue

Arguments = 4 5
Queue

There are two important differences to notice here. First, the Log, Output and Error lines have the $(Process) macro in them. This means that the output and error files will be named according to the process number of the job. You'll see what this looks like in a moment. Second, we told Condor to run the same job an extra two times by adding extra Arguments and Queue statements. Let's see what happens:

$ condor_submit sum.sub
Submitting job(s)...
Logging submit event(s)...
3 job(s) submitted to cluster 60282.

$ ls sum*out
sum.0.out  sum.1.out  sum.2.out

$ cat sum*out
1 + 2 = 3
2 + 3 = 5
4 + 5 = 9

Notice that we had three jobs with the same cluster number, but different process numbers. They have the same cluster number because they were all submitted from the same submit file. When the jobs ran, they created three different output files, each with the desired output.

You are now ready to submit lots of jobs! Although this example was simple, Condor has many, many options so you can get a wide variety of behaviors. You can find many of these if you look at the documentation for condor_submit.

On your own

Now that you've gotten your feet wet, try a few things on your own.

Just one log file

There's no reason to have a separate log file for each job. Change your submit file so that it uses a single log file.

New outputs for each run

You might have noticed that the output files were over-written when you re-ran the jobs. (That is, simple.1.out was just re-written.) That was okay for a simple exercise, but it might be very bad if you had wanted to keep around the results. Maybe you changed a parameter or rebuilt your program, and you want to compare the outputs.

Just like you used $(Process), you can also use $(Cluster). This will be a number from your job ID. For example, it would be 3 from the above example. Change your submit file to use $(Cluster) and $(Process). If you do two job submissions, will you have separate output files?

Lots of jobs

Instead of specifying the Arguments multiple times with multiple queue statements, try this:

Arguments = $(Process) $(Cluster)
queue 50

An aside: you might wish to be able to do math, something like $(Process)+1. Unfortunately, you can't do that.

A few tips and tricks

This exercise will teach you a few nifty commands to help you use Condor more easily.

Tips for condor_q

You're been using condor_q, but it shows the jobs of everyone who submitted from the computer you are running the command on. If you want to see just your jobs, try this:

$ condor_q -sub YOUR-LOGIN-NAME

Curious where your jobs are running? Use the -run option to see where jobs are running. (Idle jobs are not shown.)

$ condor_q -run
-- Submitter: vdt-itb.cs.wisc.edu : <198.51.254.90:52713> : vdt-itb.cs.wisc.edu
 ID      OWNER            SUBMITTED     RUN_TIME HOST(S)
125665.0   roy             6/20 10:05   0+00:00:07 slot1@miniosg-c04.cs.wisc.edu
125665.1   roy             6/20 10:05   0+00:00:07 slot2@miniosg-c04.cs.wisc.edu
125665.2   roy             6/20 10:05   0+00:00:07 slot3@miniosg-c04.cs.wisc.edu

condor_q can also show you your job ClassAd. Recall back to the lecture and the discussion of ClassAds. For instance, you can look at the ClassAd for a single job:

$ condor_q -l 125665.0

-- Submitter: vdt-itb.cs.wisc.edu : <198.51.254.90:53928> : vdt-itb.cs.wisc.edu
-- Submitter: vdt-itb.cs.wisc.edu : <198.51.254.90:52713> : vdt-itb.cs.wisc.edu
Out = "simple.0.out"
LastJobStatus = 1
JobCurrentStartDate = 1308582301
PublicClaimId = "<192.168.0.15:50888>#1308343655#34#..."
RemoteHost = "slot1@miniosg-c04.cs.wisc.edu"
BufferBlockSize = 32768
JobNotification = 2
JobLeaseDuration = 1200
TransferFiles = "ONEXIT"
ImageSize_RAW = 535
StreamOut = false
NumRestarts = 0
ImageSize = 750
Cmd = "/home/roy/condor-test/simple"
... output trimmed ...

There are some interesting parts you can check out. For instance, where is the job running?

$ condor_q -l 125665.0 | grep RemoteHost
RemoteHost = "slot1@miniosg-c04.cs.wisc.edu"

How many times has this job run? (It might be more than one if there were recoverable errors.)

$ condor_q -l 125665.0 | grep JobRunCount
JobRunCount = 1

Where is the user log for this job? This is helpful when you assist someone else in debugging and they're not sure.

$ condor_q -l 125665.0 | grep UserLog
UserLog = "/home/roy/condor-test/simple.0.log"

What the job's requirements? Condor automatically fills some in for you, to make sure your job runs on a reasonable computer in our cluster, but you can override any of these. I've broken the output into multiple lines to explain it to you.

$ condor_q -l 125665.0 | grep Requirements
Requirements = ((Arch =!= ""))  #  Make sure you run on a reasonable architecture. We hacked this for technical reasons, ask Alain if you're curious.
    && (OpSys == "LINUX") #  Make sure you run on Linux
    && (Disk >= DiskUsage) #  Make sure the default disk Condor is on has enough disk space for your executable. Question: What is DiskUsage?
    && (((Memory * 1024) >= ImageSize)  #  Make sure there is enough memory for your executable. Question: What is ImageSize?
    && ((RequestMemory * 1024) >= ImageSize))  #  An extra complication, similar to the previous one. Question: What is RequestMemory?
    && (HasFileTransfer) #  Only run on a computer that can accept your files.

Tips for condor_status

Curious about what jobs are being run right now?

$ condor_status -claimed

Name          OpSys       Arch   LoadAv RemoteUser           ClientMachine

slot1@miniosg LINUX       INTEL  0.000  roy@vdt-itb.cs.wisc. vdt-itb-interna
slot2@miniosg LINUX       INTEL  0.000  roy@vdt-itb.cs.wisc. vdt-itb-interna
                     Machines         MIPS       KFLOPS   AvgLoadAvg

         INTEL/LINUX        2         9486      2885154   0.000

               Total        2         9486      2885154   0.000

Curious about who has submitted jobs?

$ condor_status -submitters

Name                 Machine      Running IdleJobs HeldJobs

osgedu@cs.wisc.edu   osg-edu.cs         0        0        0
bbockelm@vdt-itb.cs. vdt-itb.cs         0        1        0
roy@vdt-itb.cs.wisc. vdt-itb.cs         3        0        0
                           RunningJobs           IdleJobs           HeldJobs

bbockelm@vdt-itb.cs.                 0                  1                  0
  osgedu@cs.wisc.edu                 0                  0                  0
roy@vdt-itb.cs.wisc.                 3                  0                  0

               Total                 3                  1                  0

Just like we could look at the ClassAd for a job, we can also look at them for computers.

$ condor_status -l slot1@miniosg-c01.cs.wisc.edu
Machine = "miniosg-c01.cs.wisc.edu"
LastHeardFrom = 1308582252
UpdateSequenceNumber = 819
JavaVersion = "1.6.0_23"
HasMPI = true
CpuIsBusy = false
HasVM = false
FileSystemDomain = "cs.wisc.edu"
JavaVendor = "Sun Microsystems Inc."
Name = "slot1@miniosg-c01.cs.wisc.edu"
... output trimmed ...

Some features of interest:

The computer's name

$ condor_status -l slot1@miniosg-c01.cs.wisc.edu | grep -i Name
Name = "slot1@miniosg-c01.cs.wisc.edu"

The computer's other name.

$ condor_status -l slot1@miniosg-c01.cs.wisc.edu | grep -i ^Machine
Machine = "miniosg-c01.cs.wisc.edu"

The state of the computer?

$ condor_status -l slot1@miniosg-c01.cs.wisc.edu | grep -i ^State
State = "Unclaimed"

The version of Condor this computer is running.

$ condor_status -l slot1@miniosg-c01.cs.wisc.edu | grep CondorVersion
CondorVersion = "$CondorVersion: 7.6.1 May 31 2011 BuildID: 339001 $"

How many CPUs this computer has

$ condor_status -l slot1@miniosg-c01.cs.wisc.edu | grep  TotalCpus
TotalCpus = 8

What else can you find that's interesting in the ClassAd?

Removing jobs

If you submit a job that you realize has a problem, you can remove it with condor_rm. For example:

$ condor_q
-- Submitter: vdt-itb.cs.wisc.edu : <198.51.254.90:39927> : vdt-itb.cs.wisc.edu
 ID      OWNER            SUBMITTED     RUN_TIME ST PRI SIZE CMD
125668.0   roy             6/20 10:10   0+00:00:03 R  0   0.7  simple 60 10

1 jobs; 0 idle, 1 running, 0 held

% condor_rm 125668
Cluster 125668 has been marked for removal.

% condor_q
-- Submitter: vdt-itb.cs.wisc.edu : <198.51.254.90:52713> : vdt-itb.cs.wisc.edu
 ID      OWNER            SUBMITTED     RUN_TIME ST PRI SIZE CMD

0 jobs; 0 idle, 0 running, 0 held

A few tips:

Historical information

You can see information about jobs that completed and are no longer in the queue with the condor_history command. It's rare that you want to see all the jobs, so try looking at jobs for just you:

condor_history USERNAME

For example:

$ condor_history -backwards roy
ID      OWNER            SUBMITTED     RUN_TIME ST   COMPLETED CMD
1.0   sccamp24        7/14 07:49   0+00:00:01 C   7/14 07:49 /bin/hostname
2.0   sccamp24        7/14 08:16   0+00:00:01 C   7/14 08:16 /home/sccamp24/
3.0   sccamp24        7/14 08:17   0+00:00:06 C   7/14 08:17 /home/sccamp24/
4.0   sccamp24        7/14 08:19   0+00:00:06 C   7/14 08:19 /home/sccamp24/
5.0   sccamp24        7/14 08:23   0+00:00:06 C   7/14 08:23 /home/sccamp24/
6.0   sccamp24        7/14 08:27   0+00:00:01 C   7/14 08:28 /home/sccamp24/
6.1   sccamp24        7/14 08:27   0+00:00:01 C   7/14 08:28 /home/sccamp24/
6.2   sccamp24        7/14 08:27   0+00:00:01 C   7/14 08:28 /home/sccamp24/
...

Workflows

As you have seen during the presentation, DAGMan (Directed Acyclic Graph Manager) is the default workflow enacting engine in Condor. It uses a very simple, yet very powerful description of a workflow in a form of a Directed Acyclic Graph. It performs very very and it is designed to handle huge workflow containing hundreds of thousands of jobs.

Coordinating Set of Jobs - A Simple DAG

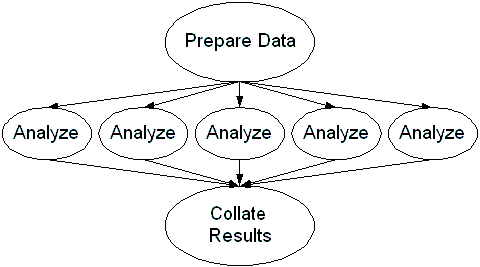

DAGMan, lets you submit complex sequences of jobs as long as they can be expressed as a directed acyclic graph. For example, you may wish to run a large parameter sweep but before the sweep run you need to prepare your data. After the sweep runs, you need to collate the results. This might look like this, assuming you want to sweep over five parameters:

Simple DAG

DAGMan has many abilities, such as throttling jobs, recovery from failures, and more. More information about DAGMan can be found at in the Condor manual.

We're going to go back to the simple example that we did first. (The one with the job that slept and summed numbers.) Make sure that you have a submit file has only one queue command in it, as when we first wrote it. And we will just run vanilla universe jobs for now, though we could equally well run standard universe jobs.

Universe                = vanilla
Executable              = simple
Arguments               = SC-CAMP11
Log                     = simple.log
Output                  = simple.out
Error                   = simple.error
should_transfer_files   = YES
when_to_transfer_output = ON_EXIT
Queue

Make sure you've built the simple program.

We are going to get a bit more sophisticated in submitting our jobs now. Let's have three windows open. In one window, you'll submit the job. In another you will watch the queue, and in the third you will watch what DAGMan does.

First we will create the most minimal DAG that can be created: a DAG with just one node. Put this into a file named simple.dag.

Job Simple simple.sub

In your first window, submit the DAG:

% condor_submit_dag simple.dag
-----------------------------------------------------------------------
File for submitting this DAG to Condor           : simple.dag.condor.sub
Log of DAGMan debugging messages                 : simple.dag.dagman.out
Log of Condor library output                     : simple.dag.lib.out
Log of Condor library error messages             : simple.dag.lib.err
Log of the life of condor_dagman itself          : simple.dag.dagman.log

Submitting job(s).
1 job(s) submitted to cluster 126130.
-----------------------------------------------------------------------

In the second window, watch the queue:

$ watch -n 5 condor_q -sub YOUR-LOGIN-NAME

# just submitted
-- Submitter: suno-11.sophia.grid5000.fr : <138.96.21.111:52361> : suno-11.sophia.grid5000.fr
 ID      OWNER            SUBMITTED     RUN_TIME ST PRI SIZE CMD
   9.0   sccamp24        7/14 08:37   0+00:00:05 R  0   19.5 condor_dagman

1 jobs; 0 idle, 1 running, 0 held

# running the DAGMan
-- Submitter: suno-11.sophia.grid5000.fr : <138.96.21.111:52361> : suno-11.sophia.grid5000.fr
 ID      OWNER            SUBMITTED     RUN_TIME ST PRI SIZE CMD
   9.0   sccamp24        7/14 08:37   0+00:00:10 R  0   19.5 condor_dagman

1 jobs; 0 idle, 1 running, 0 held

# DAG job submitted
-- Submitter: suno-11.sophia.grid5000.fr : <138.96.21.111:52361> : suno-11.sophia.grid5000.fr
 ID      OWNER            SUBMITTED     RUN_TIME ST PRI SIZE CMD
   9.0   sccamp24        7/14 08:37   0+00:00:15 R  0   19.5 condor_dagman
  10.0   sccamp24        7/14 08:38   0+00:00:00 I  0   0.0  simple SC-CAMP11

2 jobs; 1 idle, 1 running, 0 held

# running the DAG job
-- Submitter: suno-11.sophia.grid5000.fr : <138.96.21.111:52361> : suno-11.sophia.grid5000.fr
 ID      OWNER            SUBMITTED     RUN_TIME ST PRI SIZE CMD
   9.0   sccamp24        7/14 08:37   0+00:00:20 R  0   19.5 condor_dagman
  10.0   sccamp24        7/14 08:38   0+00:00:00 R  0   0.0  simple SC-CAMP11

2 jobs; 0 idle, 2 running, 0 held

# it lasts 5 seconds
-- Submitter: suno-11.sophia.grid5000.fr : <138.96.21.111:52361> : suno-11.sophia.grid5000.fr
 ID      OWNER            SUBMITTED     RUN_TIME ST PRI SIZE CMD
   9.0   sccamp24        7/14 08:37   0+00:00:25 R  0   19.5 condor_dagman
  10.0   sccamp24        7/14 08:38   0+00:00:05 R  0   0.0  simple SC-CAMP11

2 jobs; 0 idle, 2 running, 0 held

# done
-- Submitter: suno-11.sophia.grid5000.fr : <138.96.21.111:52361> : suno-11.sophia.grid5000.fr
 ID      OWNER            SUBMITTED     RUN_TIME ST PRI SIZE CMD

0 jobs; 0 idle, 0 running, 0 held

In the third window, watch what DAGMan does:

%  tail -f --lines=500 simple.dag.dagman.out
07/14/11 08:38:05 Bootstrapping...
07/14/11 08:38:05 Number of pre-completed nodes: 0
07/14/11 08:38:05 Registering condor_event_timer...
07/14/11 08:38:06 Sleeping for one second for log file consistency
07/14/11 08:38:07 MultiLogFiles: truncating log file /home/sccamp24/simple.log
07/14/11 08:38:07 Submitting Condor Node Simple job(s)...
07/14/11 08:38:07 submitting: condor_submit -a dag_node_name' '=' 'Simple -a +DAGManJobId' '=' '9 -a DAGManJobId' '=' '9 -a submit_event_notes' '=' 'DAG' 'Node:' 'Simple -a +DAGParentNodeNames' '=' '"" simple.sub
07/14/11 08:38:07 From submit: Submitting job(s).
07/14/11 08:38:07 From submit: 1 job(s) submitted to cluster 10.
07/14/11 08:38:07       assigned Condor ID (10.0.0)
07/14/11 08:38:07 Just submitted 1 job this cycle...
07/14/11 08:38:07 Currently monitoring 1 Condor log file(s)
07/14/11 08:38:07 Event: ULOG_SUBMIT for Condor Node Simple (10.0.0)
07/14/11 08:38:07 Number of idle job procs: 1
07/14/11 08:38:07 Of 1 nodes total:
07/14/11 08:38:07  Done     Pre   Queued    Post   Ready   Un-Ready   Failed
07/14/11 08:38:07   ===     ===      ===     ===     ===        ===      ===
07/14/11 08:38:07     0       0        1       0       0          0        0
07/14/11 08:38:07 0 job proc(s) currently held
07/14/11 08:38:17 Currently monitoring 1 Condor log file(s)
07/14/11 08:38:17 Event: ULOG_EXECUTE for Condor Node Simple (10.0.0)
07/14/11 08:38:17 Number of idle job procs: 0
07/14/11 08:38:22 Currently monitoring 1 Condor log file(s)
07/14/11 08:38:22 Event: ULOG_IMAGE_SIZE for Condor Node Simple (10.0.0)
07/14/11 08:38:22 Event: ULOG_JOB_TERMINATED for Condor Node Simple (10.0.0)
07/14/11 08:38:22 Node Simple job proc (10.0.0) completed successfully.
07/14/11 08:38:22 Node Simple job completed
07/14/11 08:38:22 Number of idle job procs: 0
07/14/11 08:38:22 Of 1 nodes total:
07/14/11 08:38:22  Done     Pre   Queued    Post   Ready   Un-Ready   Failed
07/14/11 08:38:22   ===     ===      ===     ===     ===        ===      ===
07/14/11 08:38:22     1       0        0       0       0          0        0
07/14/11 08:38:22 0 job proc(s) currently held
07/14/11 08:38:22 All jobs Completed!
07/14/11 08:38:22 Note: 0 total job deferrals because of -MaxJobs limit (0)
07/14/11 08:38:22 Note: 0 total job deferrals because of -MaxIdle limit (0)
07/14/11 08:38:22 Note: 0 total job deferrals because of node category throttles
07/14/11 08:38:22 Note: 0 total PRE script deferrals because of -MaxPre limit (0)
07/14/11 08:38:22 Note: 0 total POST script deferrals because of -MaxPost limit (0)
07/14/11 08:38:22 **** condor_scheduniv_exec.9.0 (condor_DAGMAN) pid 3272 EXITING WITH STATUS 0

Now verify your results:

$ cat simple.log
005 (010.000.000) 07/14 08:38:19 Job terminated.
        (1) Normal termination (return value 0)
                Usr 0 00:00:00, Sys 0 00:00:00  -  Run Remote Usage
                Usr 0 00:00:00, Sys 0 00:00:00  -  Run Local Usage
                Usr 0 00:00:00, Sys 0 00:00:00  -  Total Remote Usage
                Usr 0 00:00:00, Sys 0 00:00:00  -  Total Local Usage
        64  -  Run Bytes Sent By Job
        9154  -  Run Bytes Received By Job
        64  -  Total Bytes Sent By Job
        9154  -  Total Bytes Received By Job
...

::::console
$ cat simple.out
Hello SC-CAMP11 from Condor on machine sol-5.sophia.grid5000.fr

Looking at DAGMan's various files, we see that DAGMan itself ran as a Condor job (specifically, a scheduler universe job).

$ ls simple.dag.*
simple.dag.condor.sub  simple.dag.dagman.log  simple.dag.dagman.out  simple.dag.lib.err  simple.dag.lib.out

$ cat simple.dag.condor.sub
# Filename: simple.dag.condor.sub
# Generated by condor_submit_dag simple.dag
universe        = scheduler
executable      = /opt/condor/bin/condor_dagman
getenv          = True
output          = simple.dag.lib.out
error           = simple.dag.lib.err
log             = simple.dag.dagman.log
remove_kill_sig = SIGUSR1
+OtherJobRemoveRequirements     = "DAGManJobId == $(cluster)"
# Note: default on_exit_remove expression:
# ( ExitSignal =?= 11 || (ExitCode =!= UNDEFINED && ExitCode >=0 && ExitCode <= 2))
# attempts to ensure that DAGMan is automatically
# requeued by the schedd if it exits abnormally or
# is killed (e.g., during a reboot).
on_exit_remove  = ( ExitSignal =?= 11 || (ExitCode =!= UNDEFINED && ExitCode >=0 && ExitCode <= 2))
copy_to_spool   = False
arguments       = "-f -l . -Lockfile simple.dag.lock -AutoRescue 1 -DoRescueFrom 0 -Dag simple.dag -CsdVersion $CondorVersion:' '7.6.1' 'May' '31' '2011' 'BuildID:' '339001' '$ -Dagman /opt/condor/bin/condor_dagman"
environment     = _CONDOR_DAGMAN_LOG=simple.dag.dagman.out;_CONDOR_MAX_DAGMAN_LOG=0
queue

Clean up some of these files:

$ rm simple.dag.*

Scientific wokflow

Well, almost scientific, instead of making analysis of some HEP data, we will make some pretty pictures.

For sure, you are all familiar with fractals - the beautiful geometric shapes that can be split into parts, each of which is at least approximately a reduced-size copy of the whole.

One (and maybe the most well known) of such a structure is a Mandelbrot Set. The Mandelbrot set is a particular mathematical set of points, whose boundary generates a distinctive and easily recognisable two-dimensional fractal shape and it is the shape we will be generating using workflows.

An example of Mandelbort Set

Prerequisites

In /usr/local/bin/goatbrot you will find a simple program that can generate such image of the Mandelbrot Set. It is a command line utility that generates images in PPM format of this fractal.

goatbrot -- generate mandelbrot set images in PPM format

      )_)
   ___|oo)   Mandelbrot Set generation--
  '|  |\_|                               --for goats!
   |||| #
   ````
Test it

Generate PPM image of the Mandelbrot Set:

$ goatbrot -i 1000 -o tile_0_0.ppm -c 0,0 -w 3 -s 1000,1000
Complex image:
            Center: 0 + 0i
             Width: 3
            Height: 3
        Upper Left: -1.5 + 1.5i
       Lower Right: 1.5 + -1.5i

Output image:
          Filename: tile_0_0.ppm
     Width, Height: 1000, 1000
             Theme: beej
       Antialiased: no

Mandelbrot:
    Max Iterations: 1000
        Continuous: no

Goatbrot:
       Num Threads: 4

Completed: 100.0%

Convert it to a PNG file so it can be easily viewed:

$ convert  tile_0_0.ppm  tile_0_0.png

Note: the convert program is part of the ImageMagick suite

See the results

You can easily see the file without copying it over to your local disk using your public directory at frontend which is accessible over web.

Copy the data from the Condor UI. You can user rsync for it like:

rsync -avz <your_grid_username>@<condor_ui>:<directory_to_sync>/ /home/<your_g5k_username>/public

In case of our test user sccamp24:

rsync -avz sccamp24@paramount-12:tests/ /home/fkrikava/public/sccamp

Once syncing is done visit following URL in your browser:

https://api.grid5000.fr/sid/grid5000/sites/<site>/public/<username>/

The goatbroat program takes several parameters. Let's break them down:

-i 1000 The number of iterations. Bigger numbers generate more accurate images but are slower to run.
-o tile_000000_000000.ppm The output file to generate.
-c 0,0 The center point of the image. Here it is the point (0,0).
-w 3 The width of the image. Here is 3.
-s 1000,1000 The size of the final image. Here we generate a picture that is 1000 pixels wide and 1000 pixels tall.

The Mandelbrot set can take a while to create, particularly if you make the iterations large or the image size large. What if we broke the creation of the image into multiple invocations then stitched them together? Once we do that, we can run the each goatbroat in parallel in our cluster. Here's an example you can run by hand.

Run goatbroat 4 times:

$ goatbrot -i 1000 -o tile_0_0.ppm -c -0.75,0.75 -w 1.5 -s 500,500
$ goatbrot -i 1000 -o tile_0_1.ppm -c 0.75,0.75 -w 1.5 -s 500,500
$ goatbrot -i 1000 -o tile_1_0.ppm -c -0.75,-0.75 -w 1.5 -s 500,500
$ goatbrot -i 1000 -o tile_1_1.ppm -c 0.75,-0.75 -w 1.5 -s 500,500

Stitch them together:

$ montage tile_0_0.ppm tile_0_1.ppm tile_1_0.ppm tile_1_1.ppm -mode Concatenate -tile 2x2 mandelbot.png

Note: the montage program is part of the ImageMagick suite

This will produce the same image as above. We broke the image space into a 2 by 2 grid and ran goatbrot on each section of the grid. The montage program simply stitches the files together.

The idea is we move in the complex plane and each time we change the center point of the computation to these locations:

Also, notice that the width was adjusted by half as we are in 2x2 grid.

Try it and make sure you understand the concept before you move on.

Mandelbrot as a workflow

We'll run our goatbrot example. We are going to make a DAG with four simultaneous jobs and one final node to stitch them together as you have seen in the previous section. This means we have five jobs. We're going to run goatbrot with more iterations 100,000 so it will take longer to run.

You can create your five jobs. The goatbrot jobs very similar to each other, but they have slightly different parameters and output files.

You should be already able to come up with the submission files for the goatbrot jobs. As help, we provide the first one. Please mind how you name the files and input and outputs of the respective jobs:

goatbrot_0_0.sub:

executable              = /usr/local/bin/goatbrot
arguments               = -i 100000 -c -0.75,0.75 -w 1.5 -s 500,500 -o tile_0_0.ppm
log                     = goatbrot.log
output                  = goatbrot_0_0.out
error                   = goatbrot_0_0.err
should_transfer_files   = YES
when_to_transfer_output = ONEXIT
queue

The rest 3 will be similar, only the argument will change.

Once you are done with the goatbrot submission files you need to assemble a job to montage the results montage.sub:

You should notice a few things about the montage submission file:

  1. The transfer_input_files statement refers to the files created by the other jobs.

  2. We do not transfer the montage program because it is pre-installed on the Condor pool. How do we avoid transferring it, and how do we specify where it is installed?


universe                = vanilla
executable              = /usr/bin/montage
arguments               = tile_0_0.ppm tile_0_1.ppm tile_1_0.ppm tile_1_1.ppm -mode Concatenate -tile 2x2 mandle.png
should_transfer_files   = YES
when_to_transfer_output = ONEXIT
transfer_input_files    = tile_0_0.ppm,tile_0_1.ppm,tile_1_0.ppm,tile_1_1.ppm
transfer_executable     = false
output                  = montage.out
error                   = montage.err
log                     = montage.log
queue
Make your DAG

In a file called goatbrot.dag, you have your DAG specification:

JOB g1 goatbrot_0_0.sub
JOB g2 goatbrot_0_1.sub
JOB g3 goatbrot_1_0.sub
JOB g4 goatbrot_1_1.sub
JOB montage montage.sub
PARENT g1 g2 g3 g4 CHILD montage

Ask yourself: do you know how we ensure that all the goatbrot commands can run simultaneously and all of them will complete before we run the montage job?

Running the DAG

Submit your DAG:

$ condor_submit_dag goatbrot.dag
-----------------------------------------------------------------------
File for submitting this DAG to Condor           : goatbrot.dag.condor.sub
Log of DAGMan debugging messages                 : goatbrot.dag.dagman.out
Log of Condor library output                     : goatbrot.dag.lib.out
Log of Condor library error messages             : goatbrot.dag.lib.err
Log of the life of condor_dagman itself          : goatbrot.dag.dagman.log

Submitting job(s).
1 job(s) submitted to cluster 126182.
-----------------------------------------------------------------------

Watch your dag with condor_q:

$ watch -n 5 condor_q -sub YOUR-USER-NAME

Examine your results. For some reason, goatbrot prints everything to stderr, not stdout.

$ cat goatbrot.err_0_0
Complex image:
            Center: -0.75 + 0.75i
             Width: 1.5
            Height: 1.5
        Upper Left: -1.5 + 1.5i
       Lower Right: 0 + 0i

Output image:
          Filename: tile_0_0.ppm
     Width, Height: 500, 500
             Theme: beej
       Antialiased: no

Mandelbrot:
    Max Iterations: 100000
        Continuous: no

Goatbrot:
    Multithreading: not supported in this build

Completed: 100.0%

Examine your log files (goatbrot.log and montage.log) and DAGMan output file (goatbrot.dag.dagman.out). Do they look as you expect? Can you see the progress of the DAG in the DAGMan output file?

Clean up your results. Be careful about deleting the goatbrot.dag.* files, you do not want to delete the goatbrot.dag file, just goatbrot.dag.* .

$ rm goatbrot.dag.*
$ rm goatbrot.out.*
$ rm goatbrot.err.*

Simplifying Workflow Execution and Definition

Simple work with DAGMan

You can use following Makefile to simplify your workflow of executing workflow:

DAG=goatbrot

submit:
  condor_submit_dag $(DAG).dag

check:
  less $(DAG).dag.dagman.out

watch:
  tail -f $(DAG).dag.dagman.out

clean:
  rm -f *.condor.sub *.dagman.log *.dagman.out *.lib.err *.lib.out *rescue* *.temp *.lock *.dot *.out *.err *.log *.ps

Every time you just need to change the DAG variable to point to the name of the file that define your DAG. This file has to have a .dag extension.

Then you can use following tasks:

Workflow Visualization

Once you start using DAGMan to solve some real word problems, your workflow will grow quite considerable. As much as the DAG file is easy to write it is not that easy to read to make sure that it still works. Fortunately, there is an easy way how to visualize it.

Add following line to the goatbrot.dag:

DOT goatbrot.dot

This creates a file called goatbrot.dot (after you rerun the workflow) which contains a specification of the DAG before any programs within the DAG are submitted to Condor.

This file itself is not very helpful, but it can be used as in input to the Graphviz. You can use this tool to convert the DOT file into a PNG image for example:

$ dot -Tpng goatbrot.dot -o goatbrot.png

Or, you can also keep the vector nature of the DOT graph. The dot command can generate PostScript files that can be then easily convert into PDFs using the ps2pdf command.

$ dot -Tps goatbrot.dot -o goatbrot.ps && ps2pdf goatbrot.ps

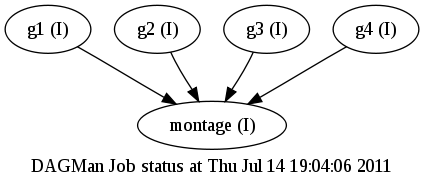

Regardless the format you use, the output should be something like:

goatbrot.dag DOT visualization

More information is again in the manual.

Simpler DAGs with variable substitutions

If you look at the DAG we made, you might find it a bit tedious because each goatbrot job has a separate Condor submit file. They're nearly identical except for a couple of parameters. Can we make it simpler?

Yes, we can!

Declare your variables

First you need to declare your variables in your submit file. Make one submit file for all of your goatbrot jobs. Here's what it looks like. Call it goatbrot.sub:

executable              = goatbrot
arguments               = -i 100000 -c $(CENTERX),$(CENTERY) -w 1.5 -s 500,500 -o tile_$(TILEY)_$(TILEX).ppm
log                     = goatbrot.log
output                  = goatbrot.out.$(TILEY).$(TILEX)
error                   = goatbrot.err.$(TILEY).$(TILEX)
should_transfer_files   = YES
when_to_transfer_output = ONEXIT
queue

Then you need to change your DAG to use VARS for variable substitution. Here's what one of the jobs would look like:

JOB g1 goatbrot.sub
VARS g1 CENTERX="-0.75"
VARS g1 CENTERY="0.75"
VARS g1 TILEX="0"
VARS g1 TILEY="0"

Edit your DAG similarly for all of your goatbrot jobs. If you need help, check the Condor manual for for a description of how to use VARS. What happens?

On your own

In real world you won't write DAGs and submit files all that often, you will usually generate them based on the needs of the experiments you will be working on.

Let's try now. Make a program that will generate a DAG and a submit file(s) for the Mandelbrot example with a variable number of tiles. For example:

$ ./gen-mandelbrot-dag 8 100000

will generate in total 64 jobs (8x8 grid) using 100000 iterations for each of the tile generation.

Try to experiment with the number of jobs with regards to the total time of execution - that you can grab out of the log file. This will give you an idea who does this kind of a workflow scales.

Bonus: use different variable for horizontal and vertical partitioning.

Exercises with Personal Condor (for home, if you like)

You can easily run Condor on your laptop or workstation. Go to Condor website and download appropriate version of you OS/ARCH and try it out. More information is in the Condor manual.

Good luck!
